Nodal Ninja Lens Ring for Viltrox AF 20mm F2.8 Air (E-mount)
Lens ring to mount the Viltrox AF 20mm F2.8 Air to a panoramic head.
Version for the Sony E-mount lens. The Nikon Z-mount version of the same lens takes a different ring (F6518).
This is a rectilinear wide-angle lens, not a fisheye. At 20mm on full frame the lens covers about 94° diagonally, so a full sphere needs several rows of shots rather than a single ring of four. If you want a four-shot workflow, a fisheye lens and its matching ring are the faster route.

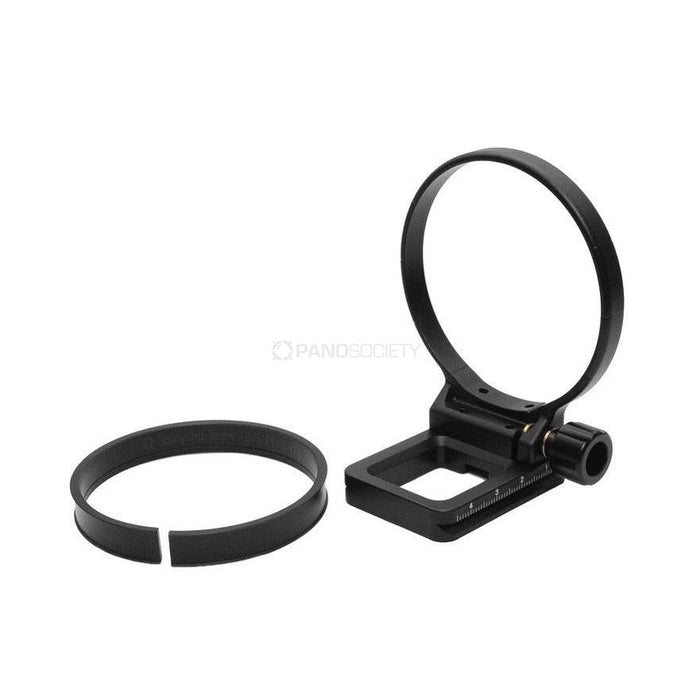

Illustrative photo only, will be updated.
This lens ring can be used with Nodal Ninja Ultimate R1/R10/R20, Ultimate M, Nodal Ninja RS and arca-swiss style clamps.
Features and Highlights
- Plastic insert is placed between the outer metal ring and the lens. It is contoured to fit the lens and hence increase area of contact.
- Large clamping area to reduce stress on the lens barrel, reducing the risk of damaging the lens.
- Mounted close to the camera to reduce stress on the lens due to gravity of camera body.
- Rolling the camera/lens in any position including the popular 0, 60 and 90 degree positions.
- Index marks for every 90 degrees in the front and every 30 degrees at the back for easy alignment of roll of lens.
- Permanently mounted to lens, making reproducible mounting possible, and much quicker to set up.
- Compact and lightweight — the lens itself is only 157 g.
- Arca Swiss Style quick release design, can be mounted directly to other compatible systems.
- Great for use on a monopod or high pole.
Optional accessories
- Universal adjustable stop plate (F6334) to remember your NPP setting.
- Soft lens ring pouch (F9222).
Package Includes
- A complete Nodal Ninja Ultimate lens ring, consisting of outer metal ring, inner plastic ring and lens ring plate, assembled together, each part customized for your lens type.
- Hex keys, misc parts.
Note: Always use a proper lens ring for your lens. Improper use of lens ring may cause stress and damage to the lens.
