Nodal Ninja 4 with RD10 Advanced Rotator (Discontinued)

Available on backorder.
Order now and we will ship in 3-4 weeks (estimated).
Save 29%
translation missing: en.product.item.price.original 312.92 €
translation missing: en.product.item.price.current 223.51 €
(270.45 € VAT incl.)
Price VAT incl applies Inside European Union. Outside EU = no VAT but you will pay import fees if imposed by your country. If you have EU VAT ID contact us before payment to activate purchases without VAT.
SKU F4504

Leave your options open for future growth. Thanks to a larger size of Nodal Ninja 4 it supports bigger and larger DSLRs including battery grips and heavier lenses with a longer focal length. The upper rotating arm has a 15 degree incremental locking mechanism.

Typical use: Panoramic photography, virtual tours, heavier and bigger cameras and lenses

Nodal Ninja 4 with RD10 rotator is the new affordable spherical panoramic tripod head from Fanotec. It features a precise upper rotator with 15 degree stops, a design borrowed from the new Ultimate M1. It supports a wide range of lenses from ultra wide angles to 100mm (35mm equivalent focal length and 25% overlap) telephotos.

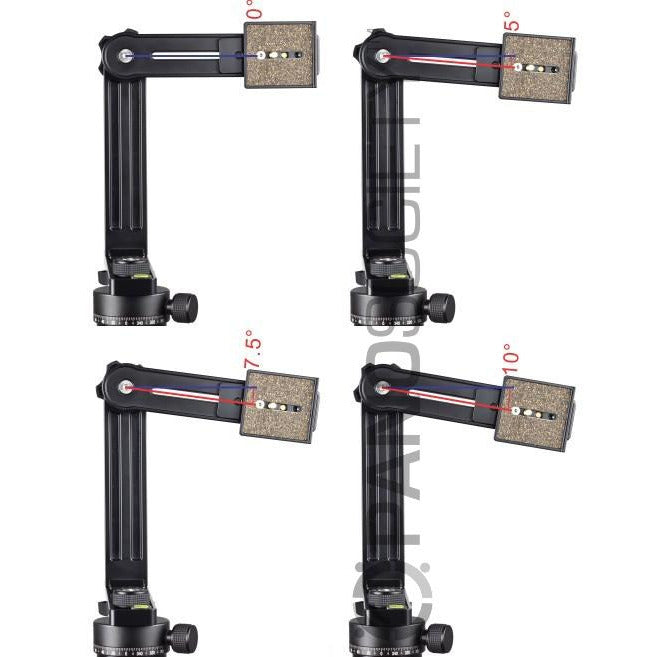

The upper rotator can be installed with an offset of +/- 5, 7.5, or 10 degree from the horizon, making it perfect for single row spherical panoramas with various fisheye lenses. Supports up to 7.7lbs (3.5kg).



Features:

RD10 is a compact and lightweight rotator with 10 detent options ranging from 90 to 5 degrees that can be changed quickly. The range of intervals is suitable for fisheye, wide angle and telephoto lenses up to 200mm equivalent focal length.

10 different degree stop increments are included (with equivalent number of stops around) include:

  • 5 (72 stops)*
  • 7.5 (48 stops)*
  • 10 (36 stops)
  • 15 (24 stops)
  • 18 (20 stops)*
  • 30 (12 stops)*
  • 36 (10 stops)
  • 45 (8 stops)*
  • 60 (6 stops)
  • 90 (4 stops)

*Requires engagement of both detent plungers (included for free with RD10).



Package includes:

  • Nodal Ninja 4 panoramic head
  • Nodal Ninja RD10 Advanced Rotator
  • 2nd generation Camera Mounting Plate (CP-CP2)
  • 3/8" to 1/4" threaded tripod screw adapter
  • Rail Stops for remembering your no-parallax point
  • Hex Key + Misc parts



Specifications:

Weight: 1045 g (2.3lbs)
Height: 255mm (10")
Length: 200mm (7 3/4")

Material: Anodized/Painted Aluminium

fir status applies only to the panorama head, the included RD10 rotator is regular
